Advanced Metal Etching for the Automotive Industry: Engineering Precision for Next-Generation Vehicle Systems

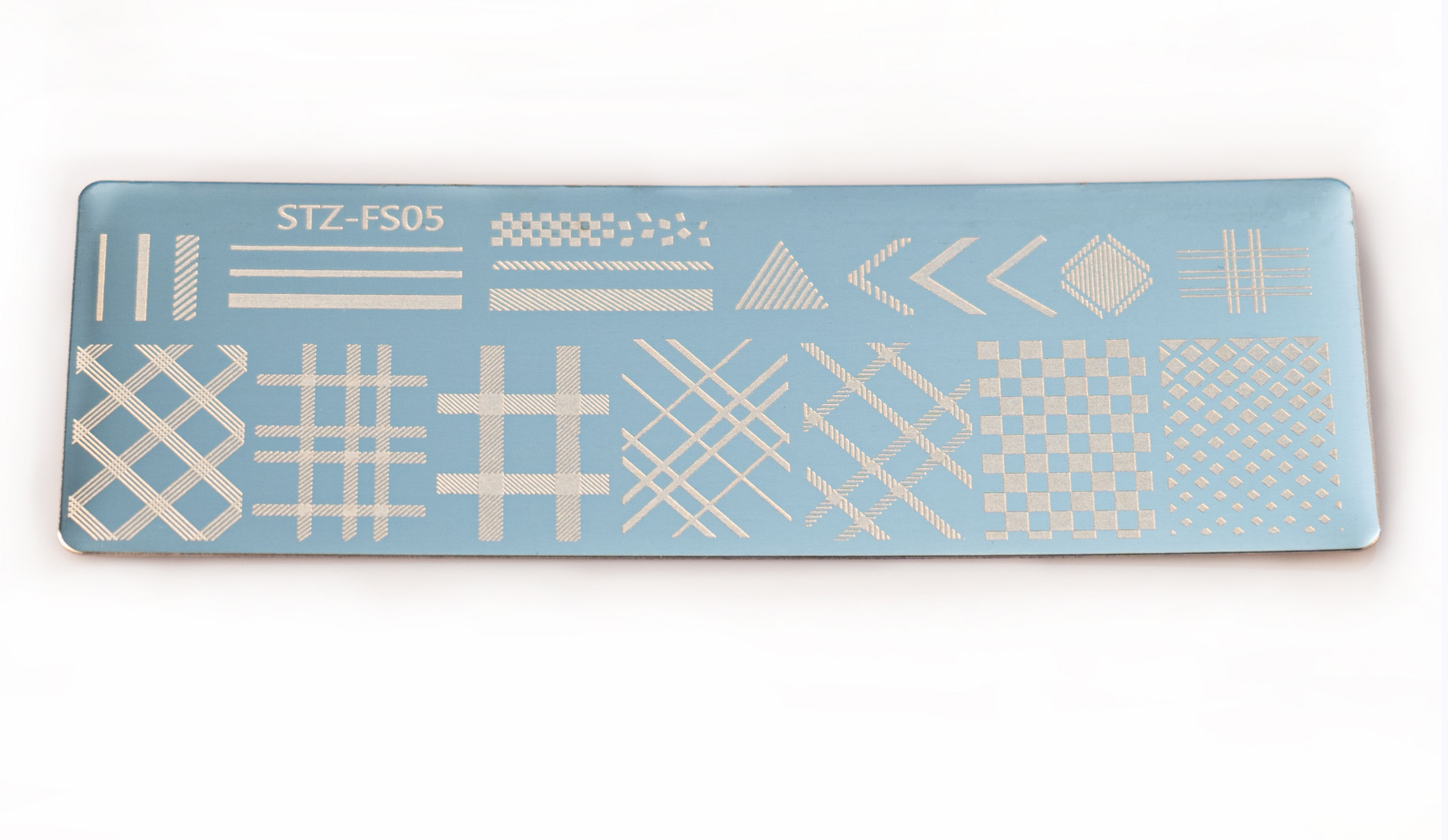

As vehicle platforms evolve toward electrification, autonomy, and higher system integration, the automotive industry increasingly relies on fabrication processes capable of producing high-accuracy, lightweight, and thermally efficient metal components. Photo Chemical Etching (PCE)—also known as chemical machining—has emerged as a critical manufacturing method due to its ability to produce micron-level precision in thin-gauge metals without inducing mechanical or thermal stress.

This article examines the engineering principles, process capabilities, and technical applications of metal etching within modern automotive systems.

1. Engineering Principles of Photo Chemical Etching

1.1 Process Fundamentals

Metal etching is a controlled chemical dissolution process involving:

1. Digital phototooling (CAD → photomask)

2. Metal cleaning and lamination with photoresist

3. UV exposure and development of the resist pattern

4. Etchant spray dissolution (commonly FeCl₃ or CuCl₂)

5. Resist stripping and final cleaning

The process achieves feature definition through isotropic etching, where material removal occurs laterally and vertically at predictable rates.

1.2 Dimensional Capabilities

Typical engineering tolerances:

• Material thickness: 0.01 mm – 2.0 mm

• Feature precision: ±10–25 μm depending on metal type and thickness

• Minimum slot/mesh size: ~30% of material thickness

• Edge quality: Burr-free, stress-free, no heat-affected zone (HAZ)

Because no mechanical force is applied, the metal’s grain structure and mechanical properties remain unchanged—ideal for functional components in electronics, energy systems, and fluid control modules.

1.3 Material Compatibility

Etching is compatible with a broad spectrum of automotive metals:

• Stainless steel (301, 304, 316L)

• Copper alloys (C1100, C2600, C5191, etc.)

• Nickel and nickel-iron alloys (Invar, Kovar)

• Aluminum and titanium

• EMI shielding materials

• Spring steels and specialty alloys

Material hardness does not affect process complexity—unlike stamping or laser fabrication.

2. Technical Advantages for Automotive Engineering

2.1 High-Density, High-Precision Micro-Geometries

Etching enables:

• Microchannels and serpentine cooling patterns

• Complex hydraulic and fuel control orifices

• High-density current collector patterns

• Ultra-fine mesh structures for filtration

With fully isotropic etching, engineers can predict dimensional change and compensate in CAD design, ensuring repeatable feature accuracy.

2.2 Zero Burrs and Zero HAZ

Critical for:

• Electrical contact surfaces

• Battery conductors

• Sensors and signal-critical components

Laser cutting introduces HAZ; stamping introduces mechanical stress, spring-back, or tool-mark deformation. Etching eliminates these concerns entirely.

2.3 Cost-Efficient Prototyping → Scalable Production

Photo tooling enables:

• Digital modification within hours

• No hard tooling wear or replacement

• Low NRE (non-recurring engineering) costs

• Rapid prototyping (1–3 days in some cases)

This makes PCE ideal for iterative automotive development—especially for EV and ADAS engineers who frequently adjust design parameters.

3. Technical Applications in Modern Automotive Systems

3.1 Electrification & Battery Systems

Chemical etching is increasingly applied in EV energy systems due to the need for ultra-thin, highly conductive structures.

Key components:

• Battery current collectors (copper/aluminum foils with micro-patterns)

• Busbars and shunt resistors with calibrated resistance values

• Cooling plates and micro-channel heat spreaders

• Fuel cell bipolar plates with high-aspect-ratio flow fields

Advantages:

• Tight control of channel depth/width

• Consistent electrical performance

• Reduced weight and improved thermal transfer

3.2 ADAS and Vehicle Electronics

Modern vehicles incorporate dozens of high-frequency and high-precision electronic modules. Etching enables:

• EMI/RFI shielding covers with integrated grounding tabs

• Fine-pitch connector contacts

• Sensor frames, reticles, and leadframes

• Heat dissipation plates and thermal spreaders

The process supports thin-gauge materials essential for reducing component mass and improving packaging efficiency.

3.3 Powertrain, Fuel, and Fluid Control Systems

PCE provides reliable micro-features for:

• Injector filters (10–200 μm openings)

• Precision flow restrictors and nozzle plates

• Transmission control plates

• Micro-orifice valves and spray plates

Uniformity of micro-openings is essential for consistent fuel atomization and hydraulic response.

3.4 Structural and Mechanical Components

Even non-electronic systems benefit:

• Springs and shims with controlled thickness

• Custom washers and spacers

• Identification tags and VIN plates

• Lightweight brackets with intricate relief patterns

These parts can be produced without the deformation risks of stamping.

4. Design for Etching (DFE): Engineering Considerations

To optimize manufacturability and cost:

• Minimum web width ≈ 80–100% of material thickness

• Compensate for isotropic undercut in CAD

• Avoid extremely deep narrow cavities

• Use fillets instead of sharp internal corners

• Define critical tolerances clearly and realistically

DFE allows engineers to leverage the full potential of etching while maintaining cost efficiency.

5. Process Control, Repeatability, and Quality Assurance

Automotive-grade etching requires rigorous QA systems:

• Statistical process control (SPC) for etch rate calibration

• Optical inspection and laser measurement systems

• Surface roughness (Ra) monitoring

• Flatness and thickness verification

• Material traceability and certifications (IATF 16949, ISO 9001)

These controls ensure consistent component performance throughout high-volume production.

Conclusion

As automotive engineering pushes toward higher performance, lower weight, tighter integration, and improved thermal/electrical efficiency, photo chemical etching provides capabilities that conventional fabrication methods cannot match. Its ability to create micron-precision features in thin metals—without introducing stresses or limiting design complexity—positions it as a foundational technology for next-generation automotive systems.

From battery current collectors and fuel cell plates to EMI shielding and micro-fluidic components, metal etching is reshaping what engineers can achieve in modern vehicle design.
